Supply User Manual ENG ->Supply Configurations -> 2.3 LU-SU1103:Synchronization -> H. Re-synch diagrams.
H. Re-synch diagrams.
Print screen of how Unifield allows sourcing a Field Order to an inter-section or intermission partner.
Print screen with DPO (Direct Purchase Order) scenario. The final instance involved in the flow can place a DPO to a supplier. Delivery is then to the instance, which is a customer of the last FO.

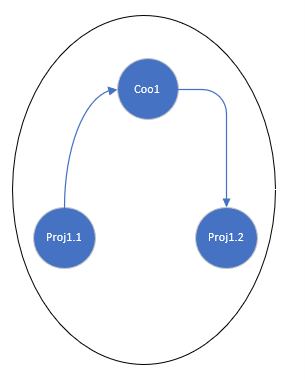

Diagrams for Re-synch flows

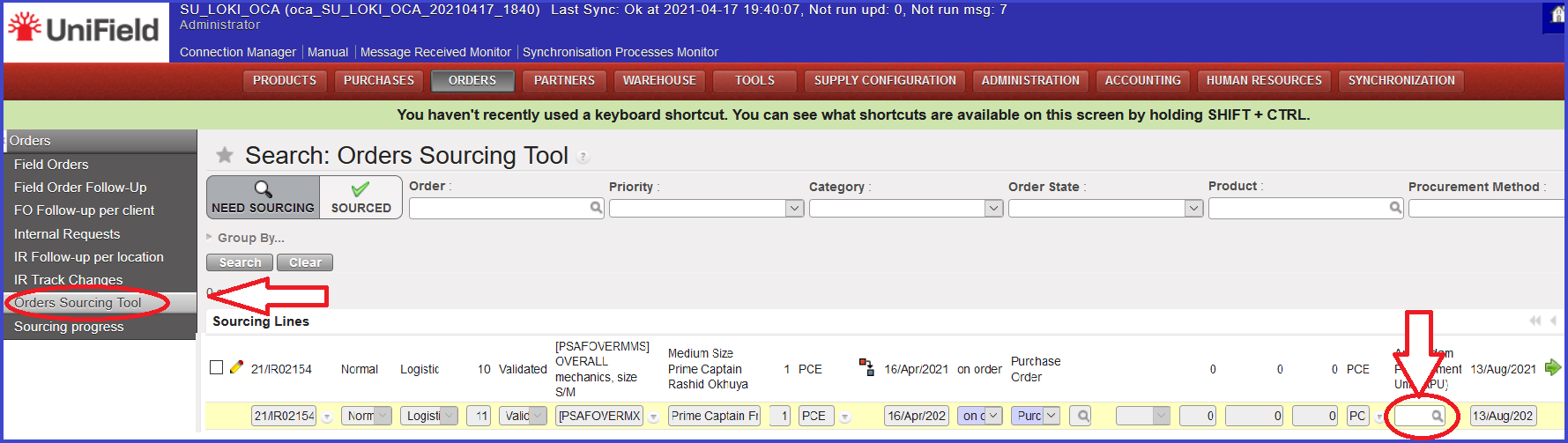

Screenshots describes options of sourcing FO to the 3rd partner (original IR on the project level, sourced through “Coordination” to the 3rd partner based in different country) , shows OST (Order Sourcing Tool) line with an already synched lined to be sourced.
Go to: Order Sourcing Tool > Edit line > Select the 3rd partner where to source FO through magnifier

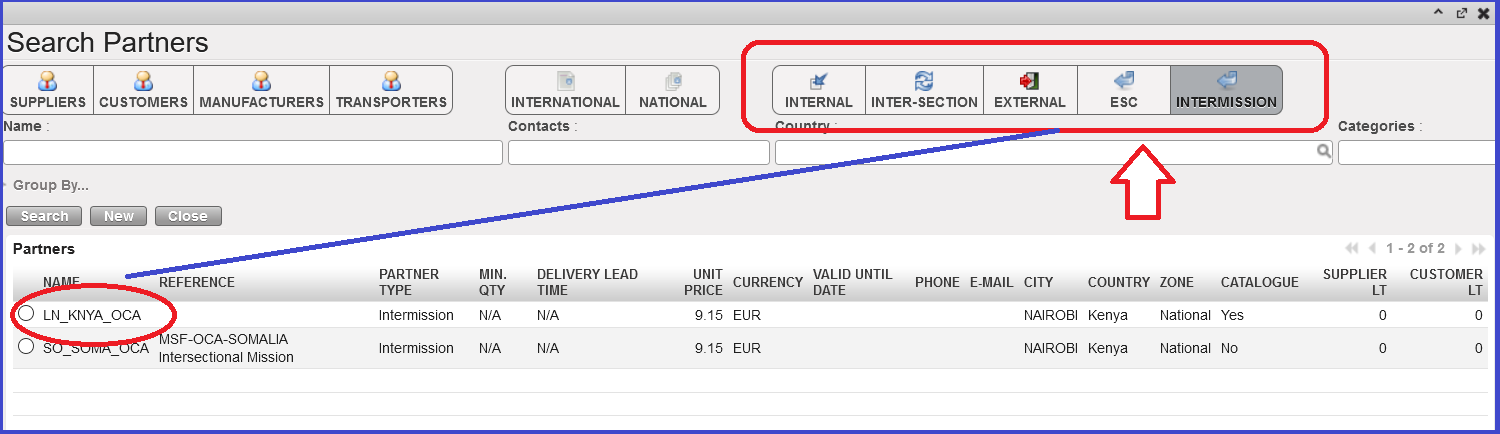

New “Search Partners” window pops up where there are different Partners options to be toggled: Internal, Inter-Section, External, ESC and Intermission. Select the one and source the FO.
